Electrical parameters:

1.Frequency range: 3400-3600MHz

2.Polarization: vertical

3.Gain: 9dbi

4.Horizontal half power beam width: 360°

5.Horizontal half power beam width: 13°

6.Anti-lightning protection: DC ground

7.VSWR: ≤1.5

8.Input impedance: 50Ω

9.Power capacity: 100W

10.Down-tilt:0°

Mechanical performance illustration:

1.Product category: N female

2.Size (without packet): ￠20*550mm

3.Weight (without packet):0.35kg

4.Wind load area：0.01m2

5.Wind resistance: 60m/s

6.Antenna shield material: Fiberglass

7.Interface position: bottom

8.Operating temperature: -30~+60℃

9.Pole mounted: ￠30~￠50

Product feature:

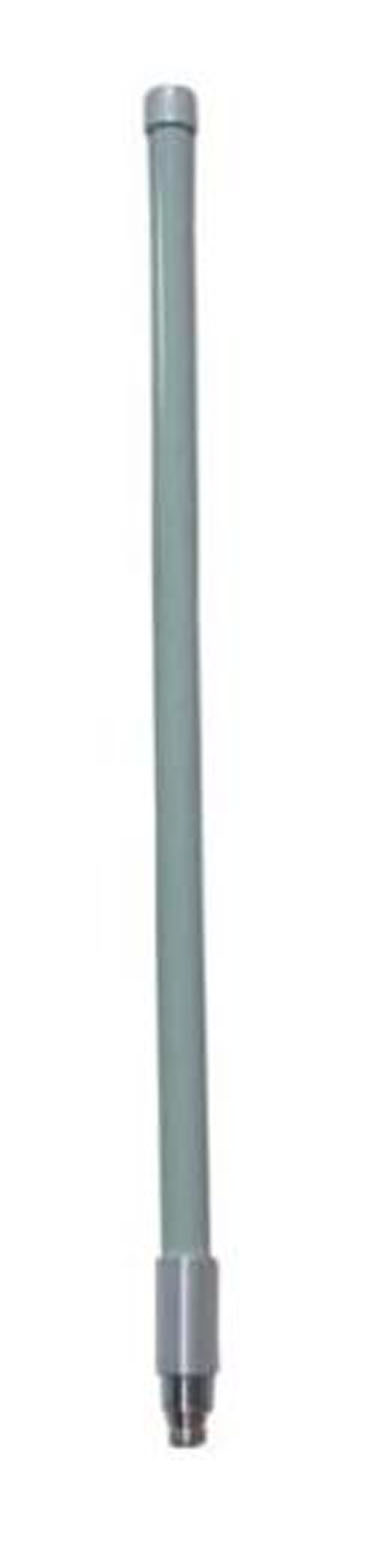

Omnidirectional antenna: omnidirectional antenna transmits signal to all direction. In vertical direction, it behaves beams with certain width, the narrower beam the higher gain under normal circumstance. Isotropic antenna normally used on the base station in suburb region that owns features of wide coverage, easy deployment and easy maintenance.
