Electrical parameters:

1.Frequency range: 1710-2170MHz

2.Polarization: ±45°

3.Gain: 15dbi

4.Down-tilt:0,3,6,9 available

5.Beam width: Horizontal 65°±5, vertical≥12°

6.Upper side lobe restrain: ≥16dB

7.Cross polarization ratio: 15（@0°）、≥10（@±60）

8.Front-to-back ratio:>25dB

9.VSWR: ≤1.4

10.Isolation degree:>30dB

11.Third order intermodulation: <-107dBm

12.Input impedance: 50Ω

13.Power capacity: 350W

Basic mechanical performance:

1.Product category:2×7/16DIN female

2.Size (without package):700*190*120mm

3.Size (with package):1055*210*190mm

4.Weight (without packet):4.3kg

5.Weight (with packet):10.55kg

6.Operating temperature: -40~+60℃

7.Mechanical down-tilt: 0~10°

8.Pole mounted: ￠50~￠115

Product feature:

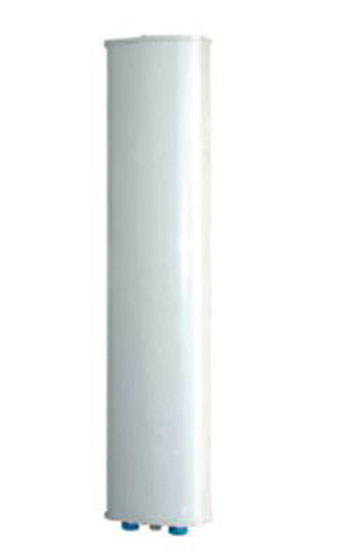

CDMA (2G) base station antenna owns advantages including easy site construction, easy maintenance, high spectrum efficiency, simple network design, flexible system capacity configuration, soft switch, clear calls, high security level.
