Electrical parameters:

1.Frequency range: 1710-2170MHz

2.Polarization: ±45°

3.Gain: 18dbi

4.Down-tilt: 2-12°

5.Beam width: Hor65°±5/Ver≥7°

6.Cross polarization ratio: 15（@0°）、≥10（@±60）

7.Front-to-back ratio:>25dB

8.Upper side-lobe restrain: ≥16dB

9.VSWR: ≤1.5

10.Isolation degree: ≥28dB

11.Third order intermodulation: <-107dBm

12.Input impedance: 50Ω

13.Power capacity: 250W

14.Interface type: 4*7/16’’ DIN Female

Product feature:

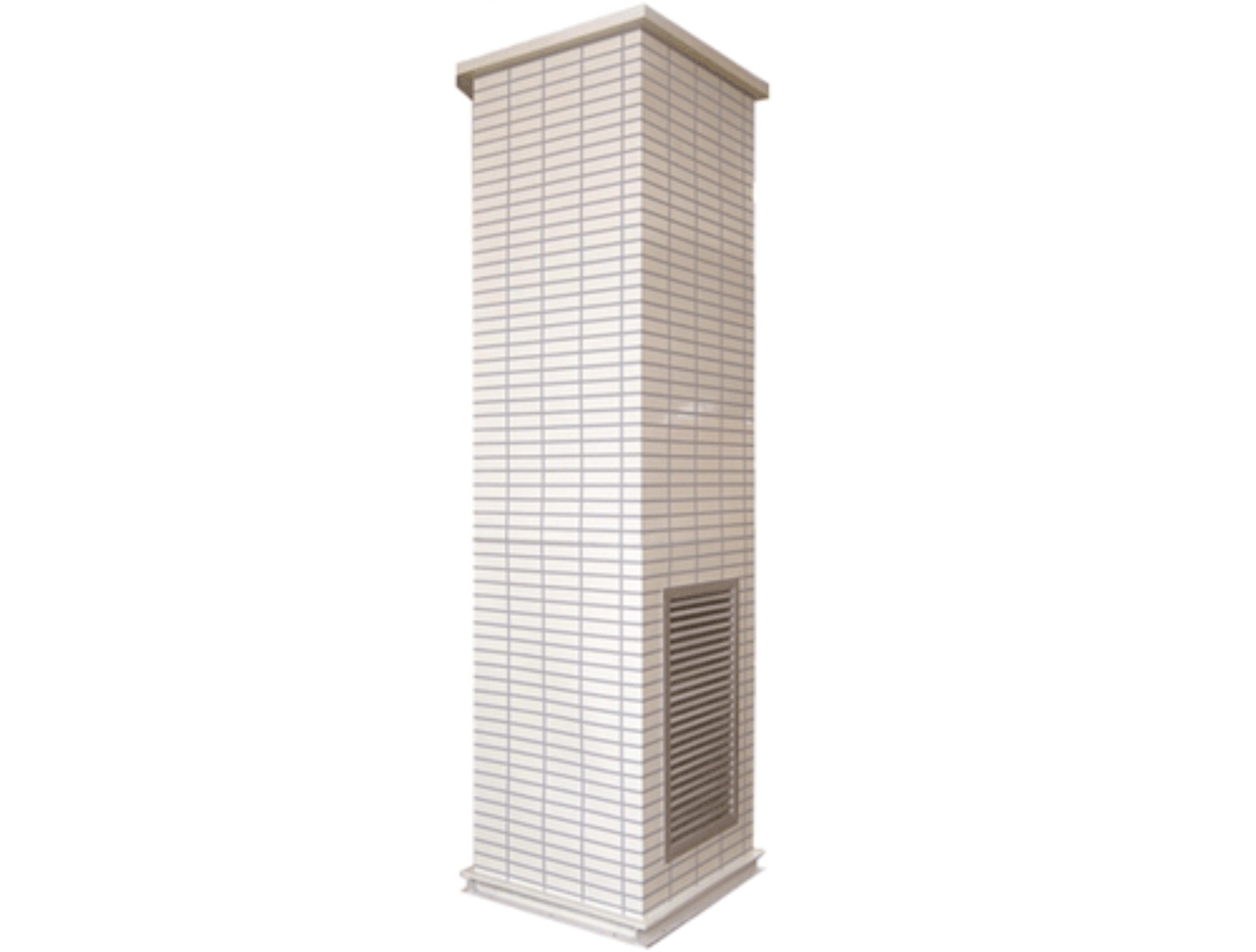

This product is widely used in cement foundation installation, building construction foundation installation and anchorage installation against the wall, whose appearance is elegant with surrounding building. It owns features of easy deployment, easy maintenance and beautified.
