Electrical parameters:

1.Frequency range: 1710-2170MHz

2.Polarization: ±45°

3.Gain: 18dbi

4.Down-tilt: 2-12°

5.Beam width: Hor65°±5/Ver≥7°

6.Cross polarization ratio: 15（@0°）、≥10（@±60）

7.Front-to-back ratio:>25dB

8.Upper side-lobe restrain: ≥16dB

9.VSWR: ≤1.5

10.Isolation degree: ≥28dB

11.Third order intermodulation: <-107dBm

12.Input impedance: 50Ω

13.Power capacity: 250W

14.Interface type 4*7/16’’ DIN Female

Product feature:

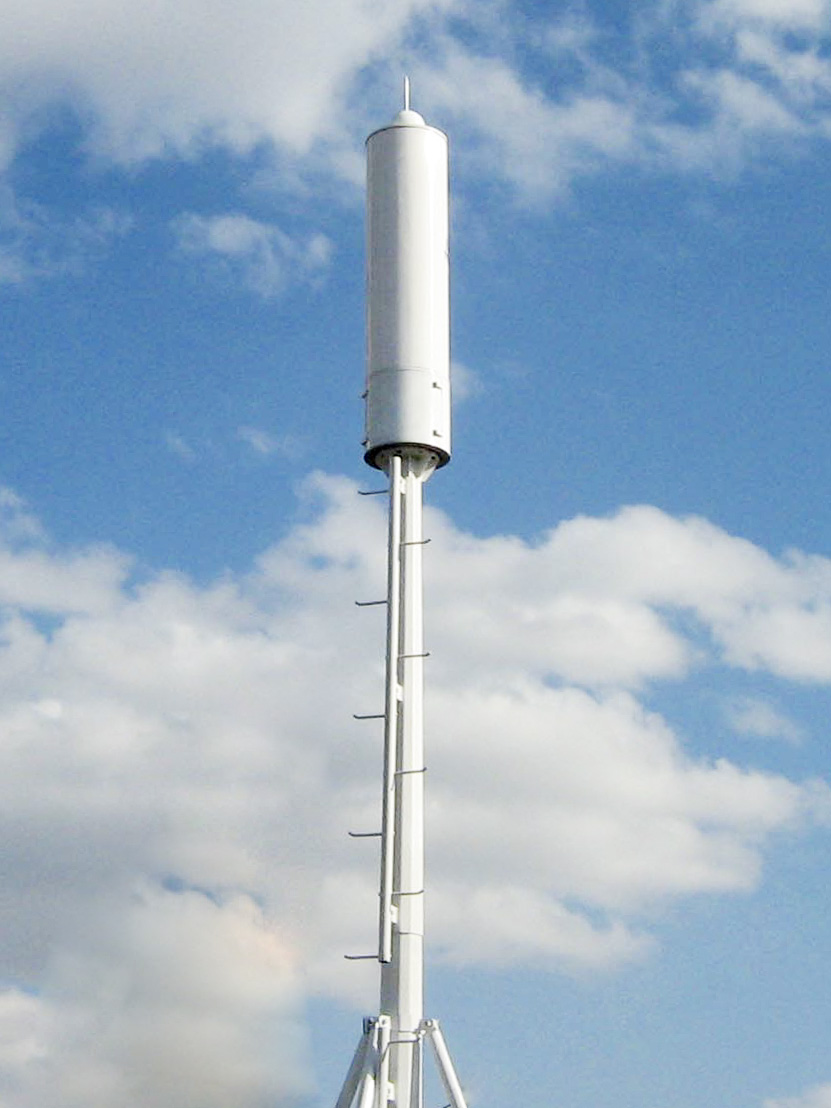

The product is widely used at top of building, roads, parks and residential village whose shield is able to cover 1-3 antennas. It owns features of easy deployment, easy maintenance and environmental harmony.
