Electrical parameters:

1.Frequency range: 1710-2170MHz

2.Polarization: ±45°

3.Gain: 18dbi

4.Down-tilt: 2-12°

5.Beam width: Hor65°±5/Ver≥7°

6.Cross polarization ratio: 15（@0°）、≥10（@±60）

7.Front-to-back ratio:>25dB

8.Upper side-lobe restrain: ≥16dB

9.VSWR: ≤1.5

10.Isolation degree: ≥28dB

11.Third order intermodulation: <-107dBm

12.Input impedance: 50Ω

13.Power capacity: 250W

14.Interface type:4*7/16’’ DIN Female

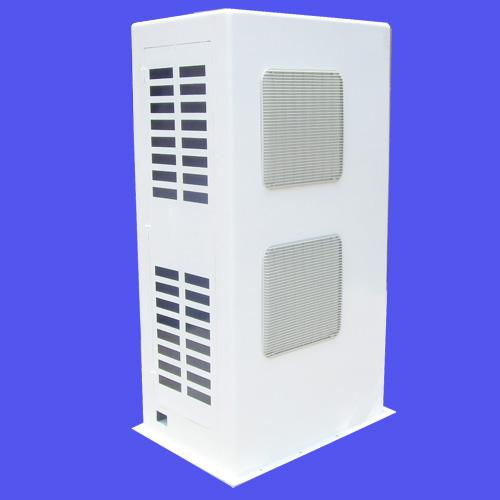

Product feature:

This product is widely installed against walls in city buildings, building construction foundation installation and anchorage installation against the wall whose appearance is environmental harmony. It also owns features of easy construction and easy maintenance.
